22 Inch LED Warning Light Bar 12/24V

Product Description for 22 Inch LED Warning Light Bar 12/24V

Experience the next level of visibility and safety with the 22 Inch LED Warning Light Bar 12/24V, designed for professional-grade performance on and off the road. Combining powerful illumination with versatile functionality, this Warning Light Bar features a 3800-lumen high beam, white position light, and an amber R65-approved warning light – all integrated into one sleek, durable housing.

Engineered with high-quality aluminium construction and a tough polycarbonate lens, it’s built to endure extreme weather, vibration, and off-road conditions. The IP67/IP69K waterproof and dustproof ratings ensure long-lasting performance even in the harshest environments, while ECE approvals (R10, R65, R146, R149) guarantee legal compliance and reliability for road use.

Key Features

• Multi-function LED design: High beam, amber warning, and white position lights in one unit.

• Powerful 3800-lumen output with 6000–6500K bright white colour temperature.

• ECE R10, R65, R146, R149 approved for legal and safe operation.

• IP67/IP69K-rated housing for maximum protection from water and dust.

• Durable aluminium body and polycarbonate lens for long-term use.

• Voltage range 10–30V, compatible with 12V and 24V systems.

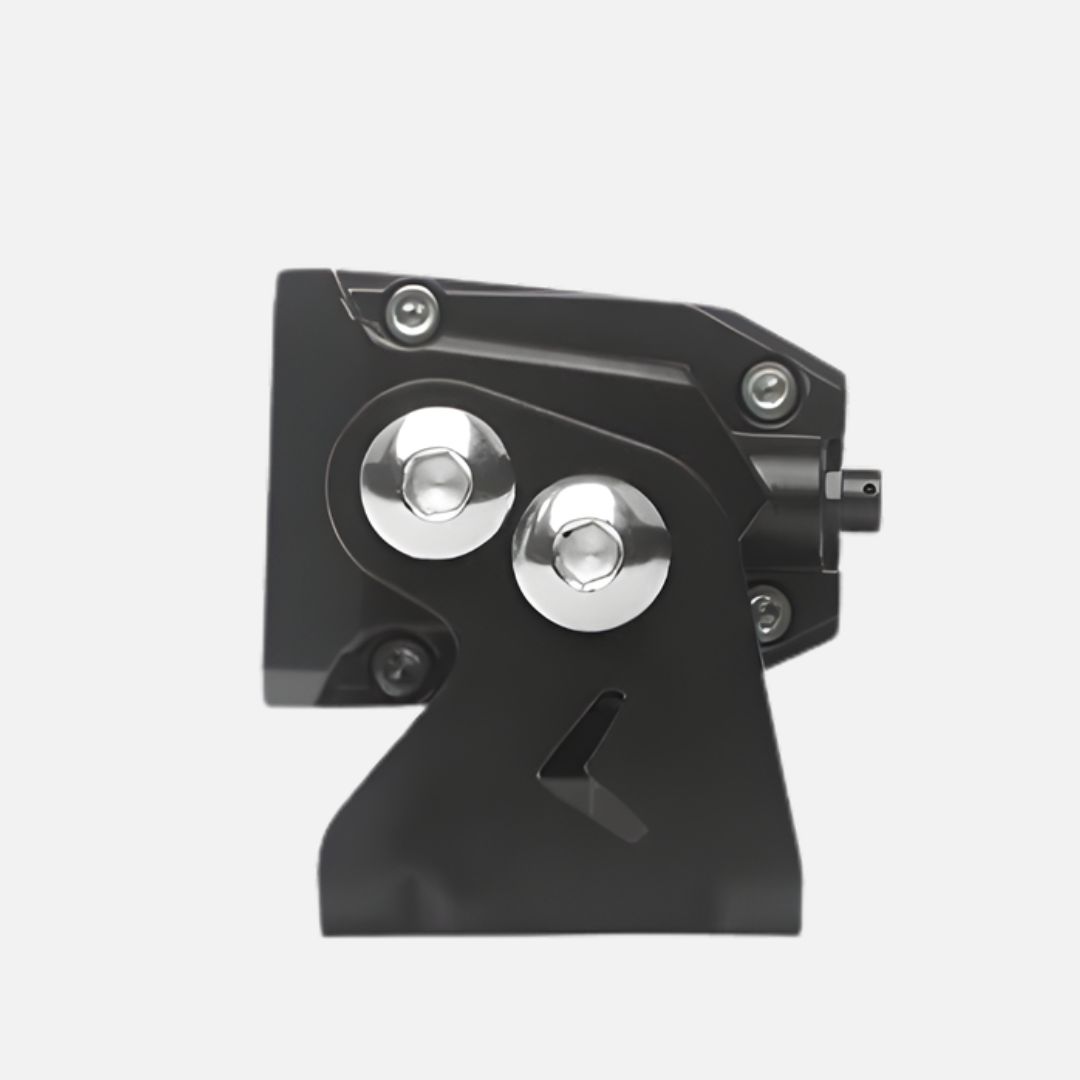

• Side mount brackets for easy and secure installation.

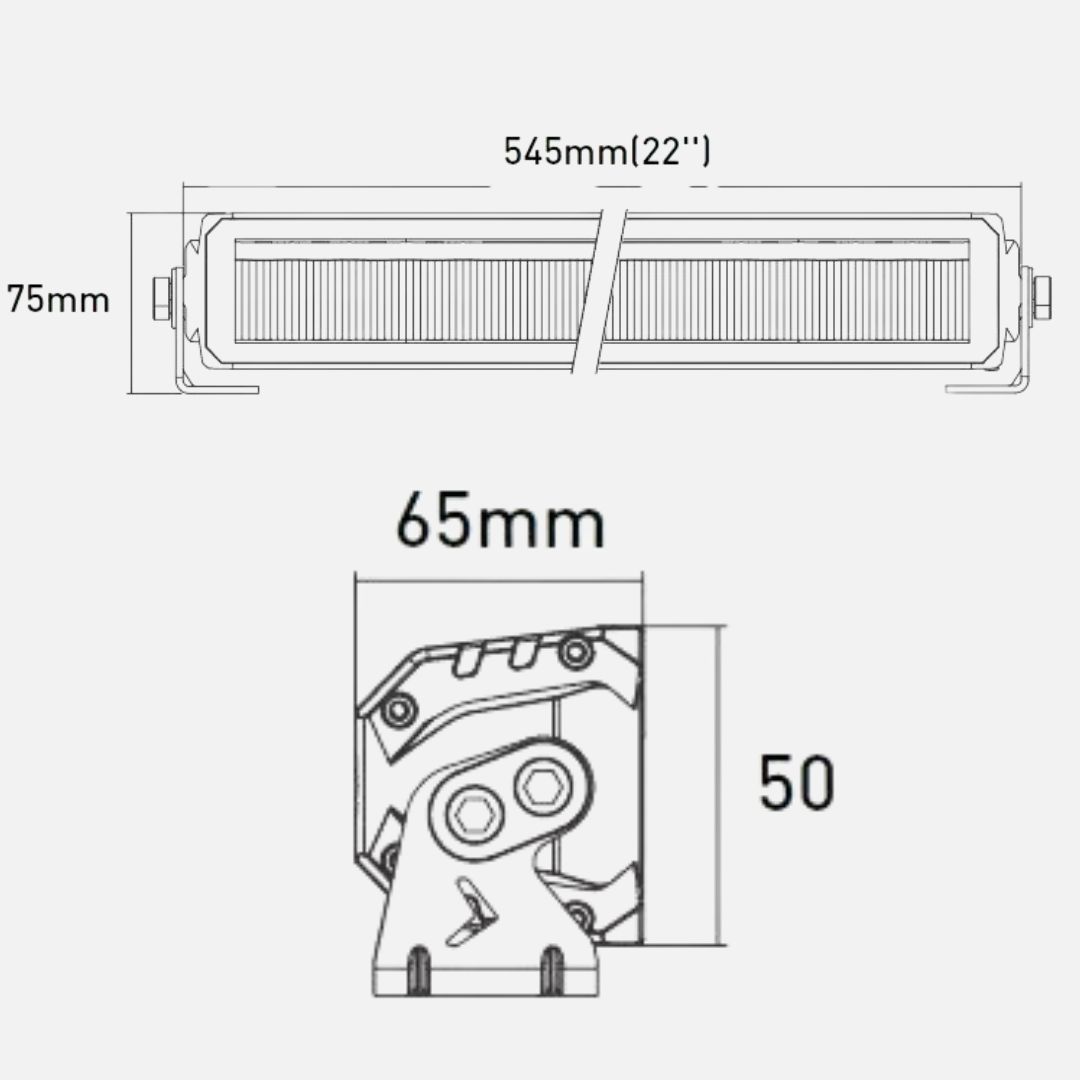

• Compact dimensions: 545 × 65 × 75 mm.

• Wiring configuration:

  • Black – Negative

  • Red – Driving Light

  • Yellow – Amber Position Light

  • White – White Position Light

  • Grey – Warning Light

  • Blue – Sync/Mode Switch

Technical Specifications

• Voltage: 10–30V DC

• Power: 80W

• Raw Lumens: 3800 lm

• Colour Temperature: 6000–6500K

• IP Rating: IP67 / IP69K

• Material: Aluminium Housing + Polycarbonate Lens

• Certifications: ECE R10, R65, R146, R149

• Dimensions: 545 × 65 × 75 mm

Compatible With / Applications

This Light bar from LED Lights Ireland is ideal for trucks, off-road vehicles, recovery vans, agricultural machinery, and emergency fleets, this versatile LED light bar delivers brilliant visibility and advanced warning functionality. Perfect for both professional and recreational use, it combines strength, safety, and modern design to keep you visible and protected wherever you go.

Operating Voltage: DC 10–30V (12V/24V compatible)

Power: 80W

Lumens: 3800LM

Colour temperature: 6000K

Waterproof Rating: IP67 & IP69K

Material: Aluminium Housing + Polycarbonate Lens

Certification: ECE R10, R65, R146, R149

Dimensions: 545 × 65 × 75 mm
