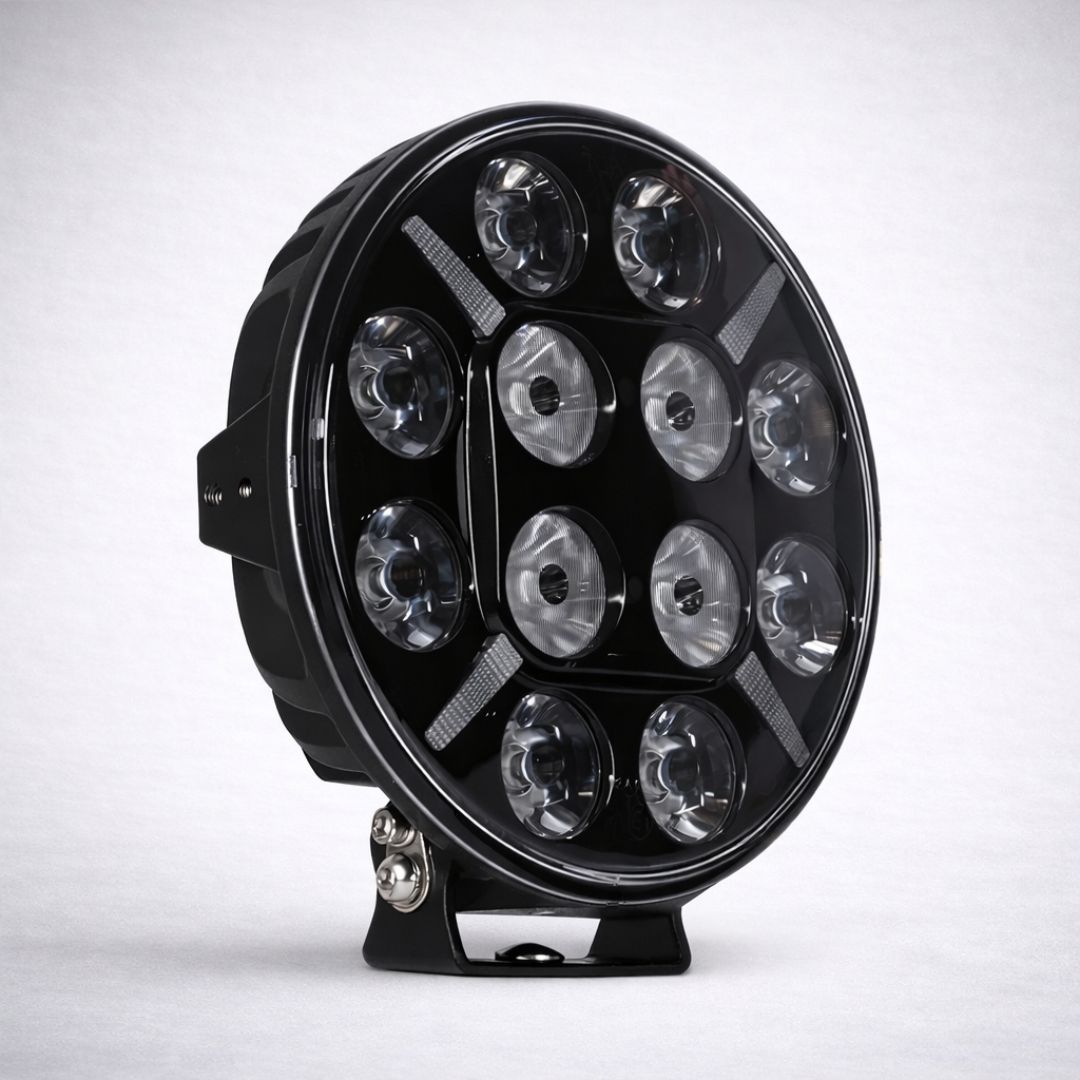

Product Description for 7″ Round LED Spotlight DRL White/Amber 9-36V DC

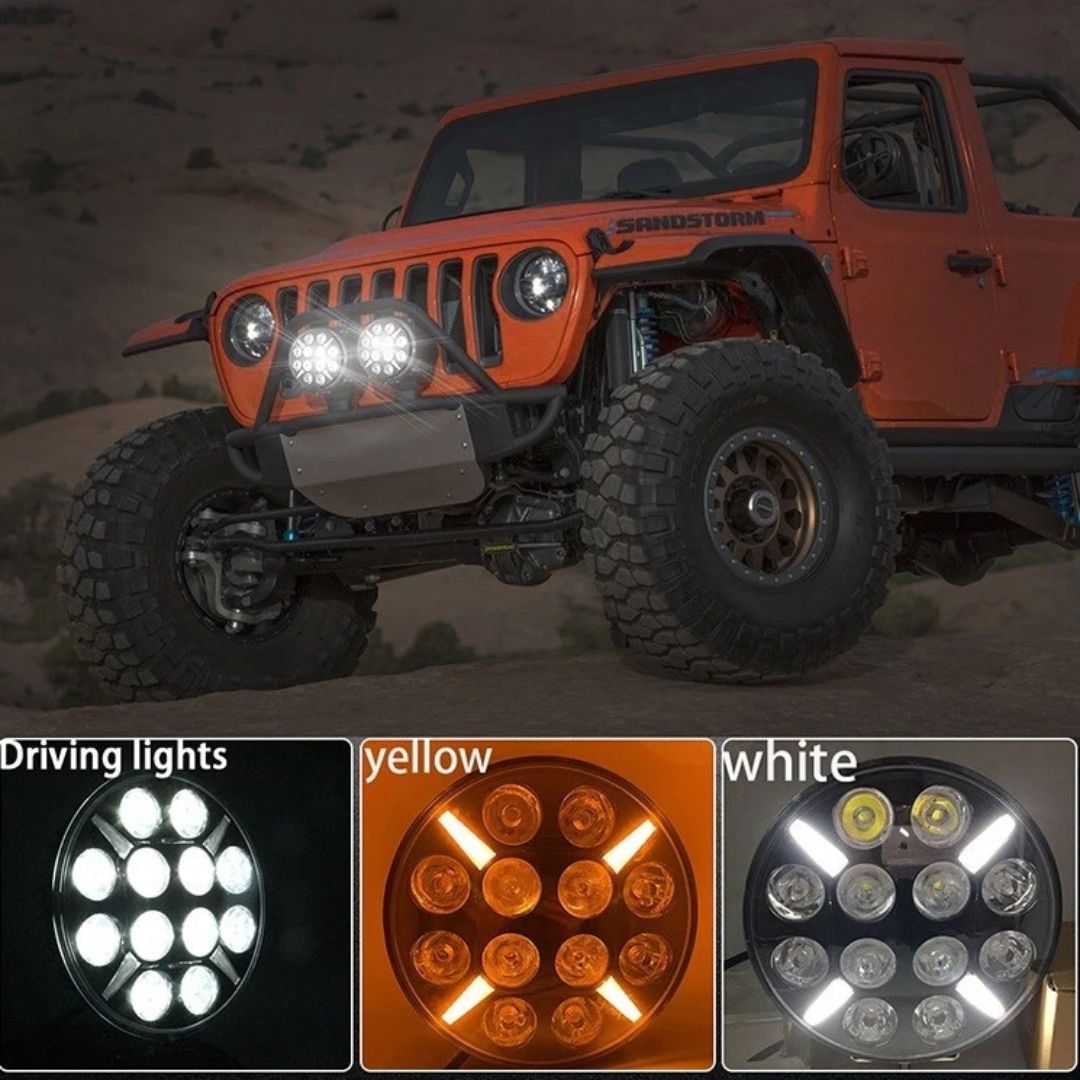

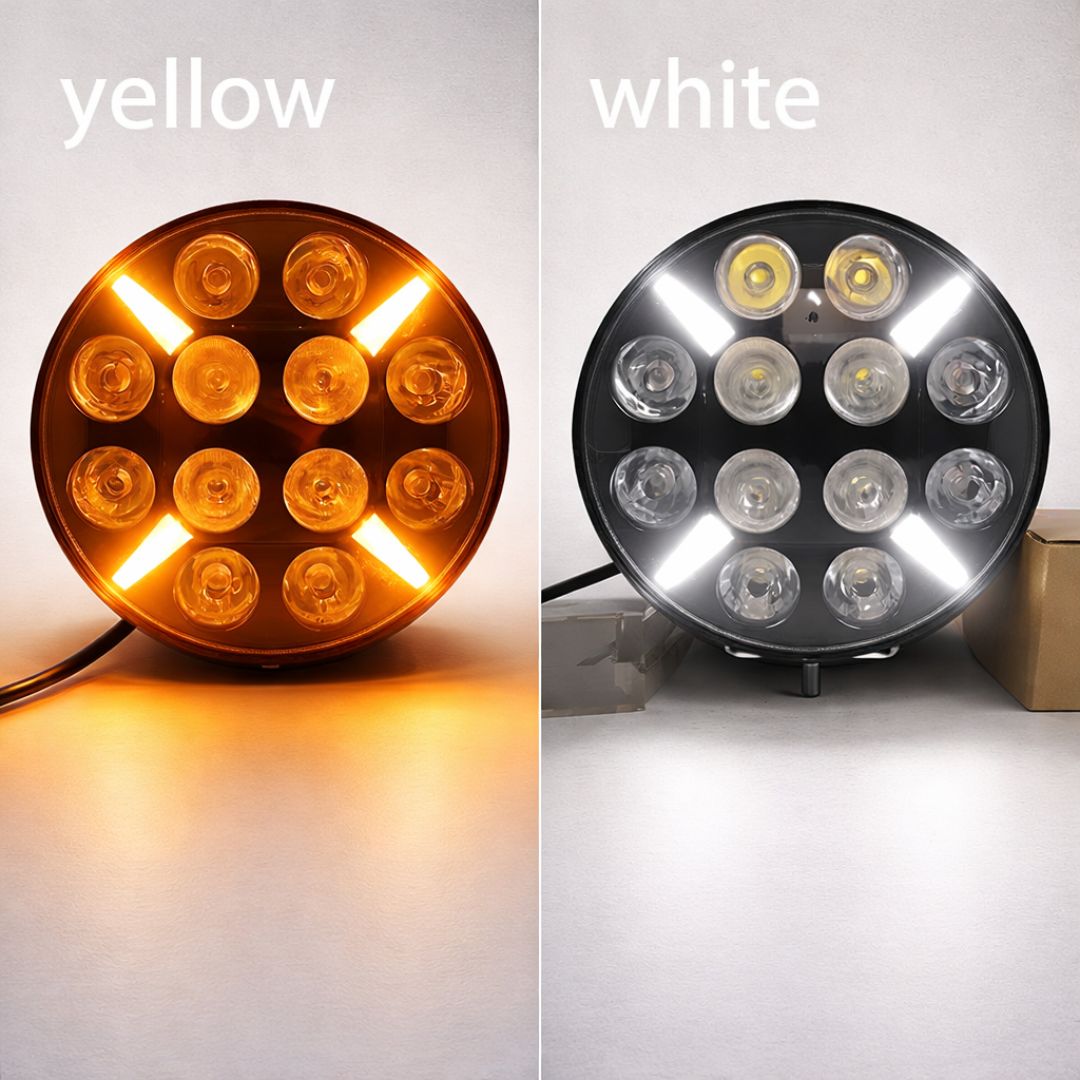

The 7″ Round LED Spotlight is a powerful and versatile lighting solution designed for trucks, off-road vehicles, and heavy-duty machinery. Built using high-quality materials, this spotlight offers excellent durability and performance, making it ideal for both on-road and off-road use. With a modern dual-colour DRL design, the 7″ Round LED Spotlight combines strong driving illumination with stylish amber and white position lights.
Equipped with 12 high-powered 5W LEDs for the main driving beam and additional LEDs for position lighting, this work light delivers a total output of 5400 lumens. The spot beam ensures focused and long-distance visibility, while the integrated amber and white DRL lights enhance vehicle presence and safety. Designed to operate within a wide 9–36V DC range, it is suitable for both 12V and 24V systems.

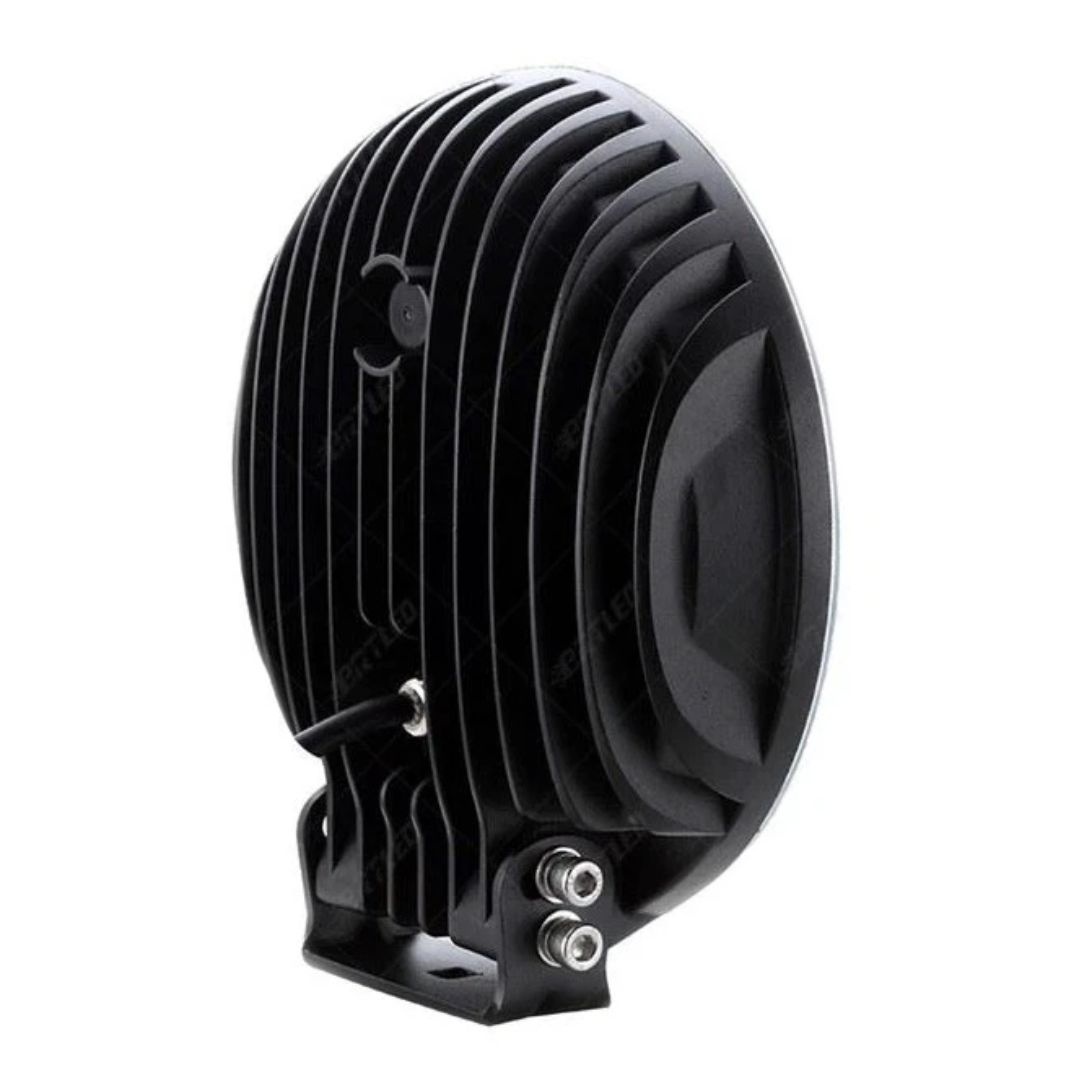

The 7″ Round LED Spotlight features a durable stainless steel housing and bracket, along with a tough polycarbonate lens for added protection. Its IP67 waterproof rating ensures reliable performance in harsh weather conditions, while the operating temperature range of -40°C to +65°C allows consistent use in extreme environments. Fully E-approved and built to OEM specifications, this light is both practical and compliant.
Key Features
- 7″ Round LED Worklight with dual colour DRL (white and amber)
- High brightness output with 5400 lumens
- 12 x 5W LEDs for driving beam plus additional position LEDs
- Durable stainless steel housing and bracket
- IP67 waterproof rating for all-weather reliability
- Wide voltage compatibility (9–36V DC)
- Fully E-approved and road legal
- Supplied with mounting bracket and fittings
Technical Specifications
- Operating Voltage: 9–36V DC
- Power Consumption: 60W
- LED Configuration: 12 x 5W (driving), 4 x 1W amber, 4 x 1W white
- Lumen Output: 5400 LM
- Waterproof Rating: IP67
- Housing Material: Stainless steel
- Bracket Material: Stainless steel
- Lens Material: Polycarbonate (PC)
- Operating Temperature: -40°C to +65°C
- Weight: 1.6 kg
Compatible With / Applications

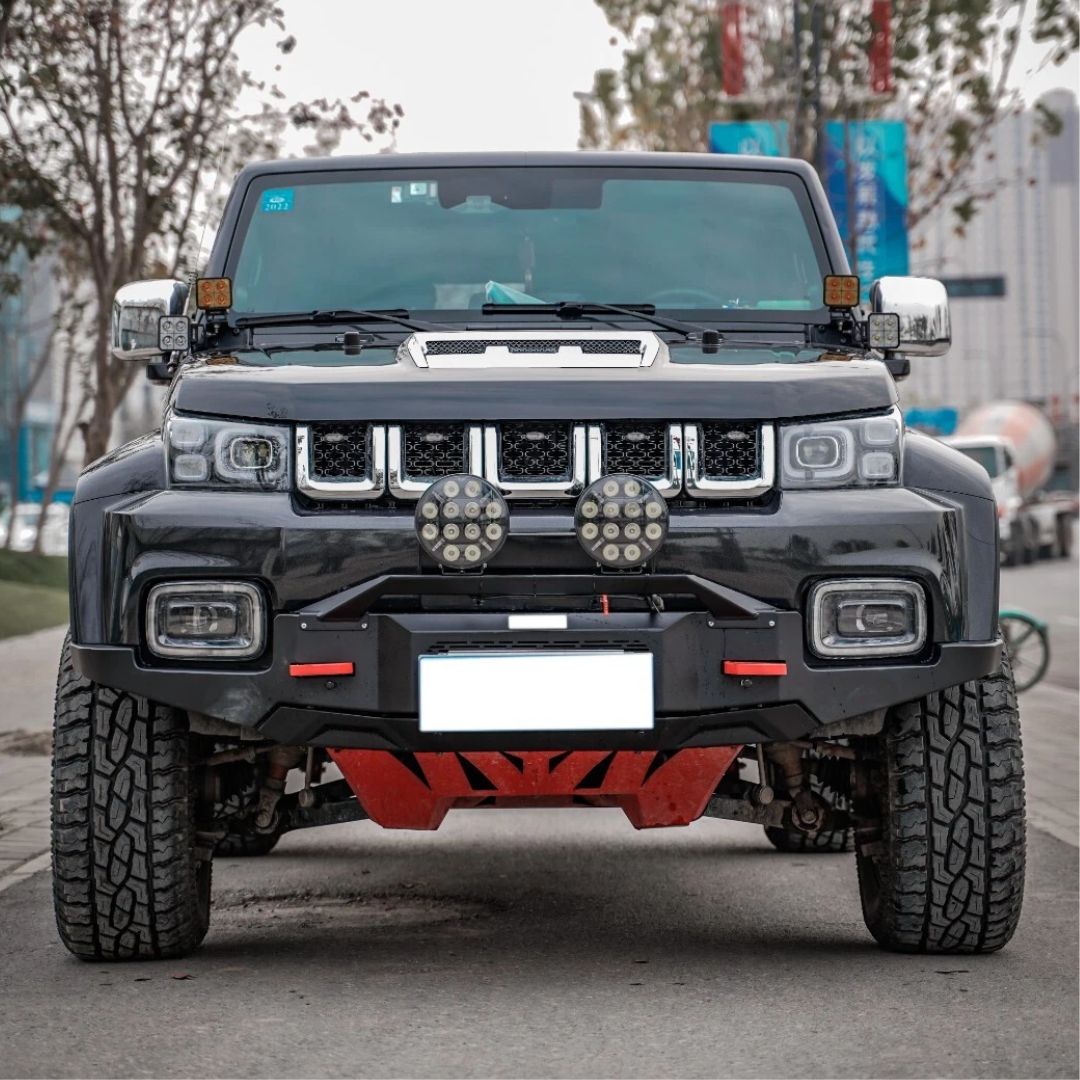

The 7″ Round LED Spotlight is compatible with Scania, MAN, DAF, Volvo, Iveco, and Mercedes trucks, and is suitable for roof bars and bumpers. It is also ideal for off-road vehicles such as SUVs, ATVs, and 4x4s, as well as machinery including tractors, excavators, cranes, and construction equipment.
For compatibility or installation support, contact LED Lights Ireland at 01 4140841.
Operating Voltage: 9–36V DC
Power Consumption: 60W
LED Configuration: 12 x 5W (driving), 4 x 1W amber, 4 x 1W white
Lumen Output: 5400 LM
Waterproof Rating: IP67
Housing Material: Stainless steel
Bracket Material: Stainless steel
Lens Material: Polycarbonate (PC)
Operating Temperature: -40°C to +65°C
Weight: 1.6 kg
