9″ Round LED Spotlight DRL White/Amber 9–36V DC

Operating Voltage: 9–36V DC

Power Consumption: 92.4W

LED Quantity: 16 pcs (10W)

Beam Pattern: Spot (white) + position light (amber/white)

Lumen Output: 12,000 (theoretical), 9,600 (operational)

Material (Housing/Bracket): Stainless steel

Lens Material: Polycarbonate

Waterproof Rating: IP68

Cable Length: 50 cm

Weight: 1.1 kg

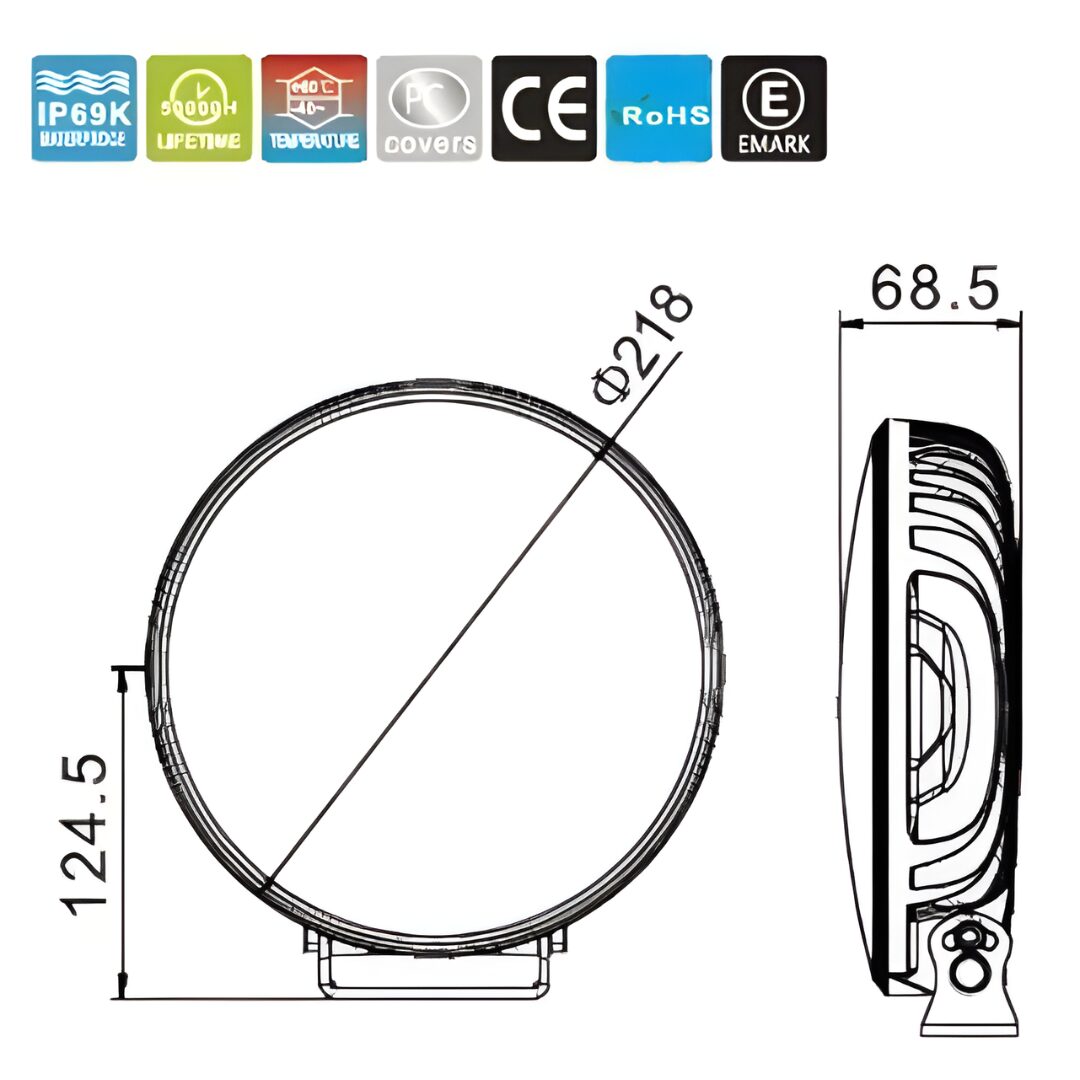

Dimensions: 218mm diameter, 234.5mm height, 68.5mm depth

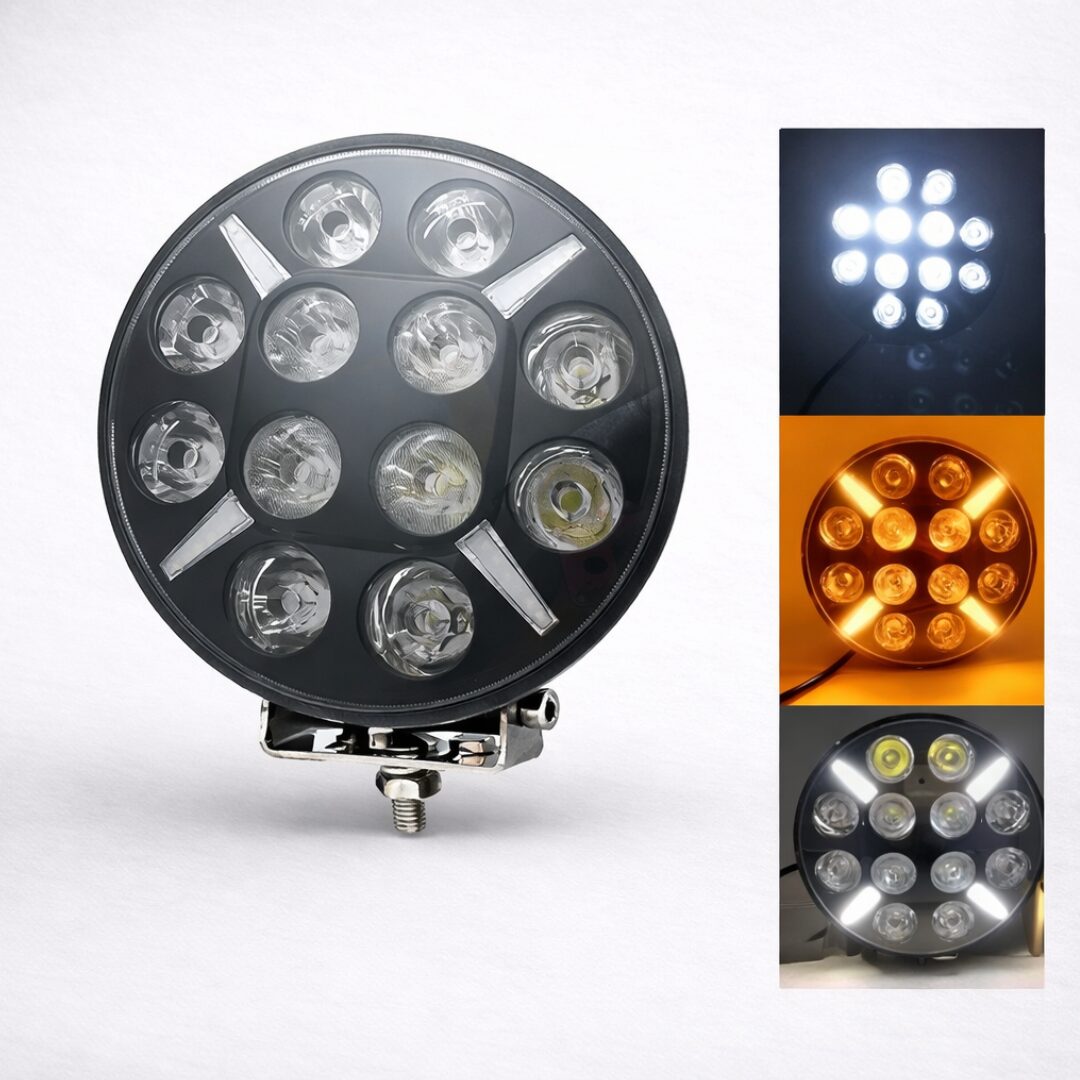

Product Description for 9″ Round LED Spotlight DRL White/Amber

The 9″ Round LED Spotlight is a high-performance lighting solution designed for trucks, 4x4s, and heavy-duty applications. Built with premium materials and advanced LED technology, this spotlight delivers powerful illumination combined with dual-colour position lighting for enhanced visibility and style. With a robust stainless steel housing and bracket, it is engineered to withstand demanding environments while maintaining long-term durability.

This 9″ Round LED Spotlight features a spot beam pattern producing a strong white light output, complemented by integrated orange/amber and white position lights. With a theoretical output of 12,000 lumens and an operational output of 9,600 lumens, it ensures excellent forward visibility in dark or challenging conditions. The inclusion of 16 high-powered LEDs provides consistent and efficient lighting performance.

Designed for versatility, the unit operates within a wide voltage range of 9–36V DC, making it suitable for both 12V and 24V systems. Its IP68 waterproof rating ensures reliable operation in harsh weather conditions, while the polycarbonate lens adds extra protection against impact. Complete with DT connectors and EMC filters, installation is straightforward and interference-free.

Key Features

• 9″ Round LED Spotlight with high-output spot beam performance
• Dual position lights – orange/amber and white
• High lumen output – 12,000 theoretical / 9,600 operational
• Durable stainless steel housing and bracket
• IP68 waterproof rating for harsh environments
• E9 road legal approval for compliant use
• Supplied with mounting bracket and fittings

Technical Specifications

• Operating Voltage: 9–36V DC
• Power Consumption: 92.4W
• LED Quantity: 16 pcs (10W)
• Beam Pattern: Spot (white) + position light (amber/white)
• Lumen Output: 12,000 (theoretical), 9,600 (operational)
• Material (Housing/Bracket): Stainless steel
• Lens Material: Polycarbonate
• Waterproof Rating: IP68
• Cable Length: 50 cm
• Weight: 1.1 kg
• Dimensions: 218mm diameter, 234.5mm height, 68.5mm depth

Compatible With / Applications

This 9″ Round LED Spotlight is compatible with Scania, MAN, DAF, Volvo, Iveco, and Mercedes trucks, and is ideal for roof bars and bull bars. It is also suitable as work light for off-road vehicles such as SUVs, ATVs, and 4x4s, as well as machinery including tractors, excavators, cranes, and more.

For compatibility or installation support, contact LED Lights Ireland at 01 4140841.
