LED Lighting Switch Control Panel 12/24V 4-channel

Power supply: 12–36 V

Maximum power: 100 W

Maximum current: 8 A

LED backlight: Yes

Panel dimensions: 65 × 65 × 30 mm

Cable length: Approx. 30 cm

Mounting options: 3M adhesive tape or mounting bracket

Certification: ECE R10 (EMC compliant)

Product Description for LED Lighting Switch Control Panel 12/24V 4-channel

The EPWLR21 LED Lighting Switch Control Panel 12/24V 4-channel is a compact and practical solution for managing multiple vehicle lighting functions from one central location. Designed for use in special vehicles, work machines, SUVs, and camper vans, this control panel simplifies lighting operation while keeping your dashboard clean and organised.

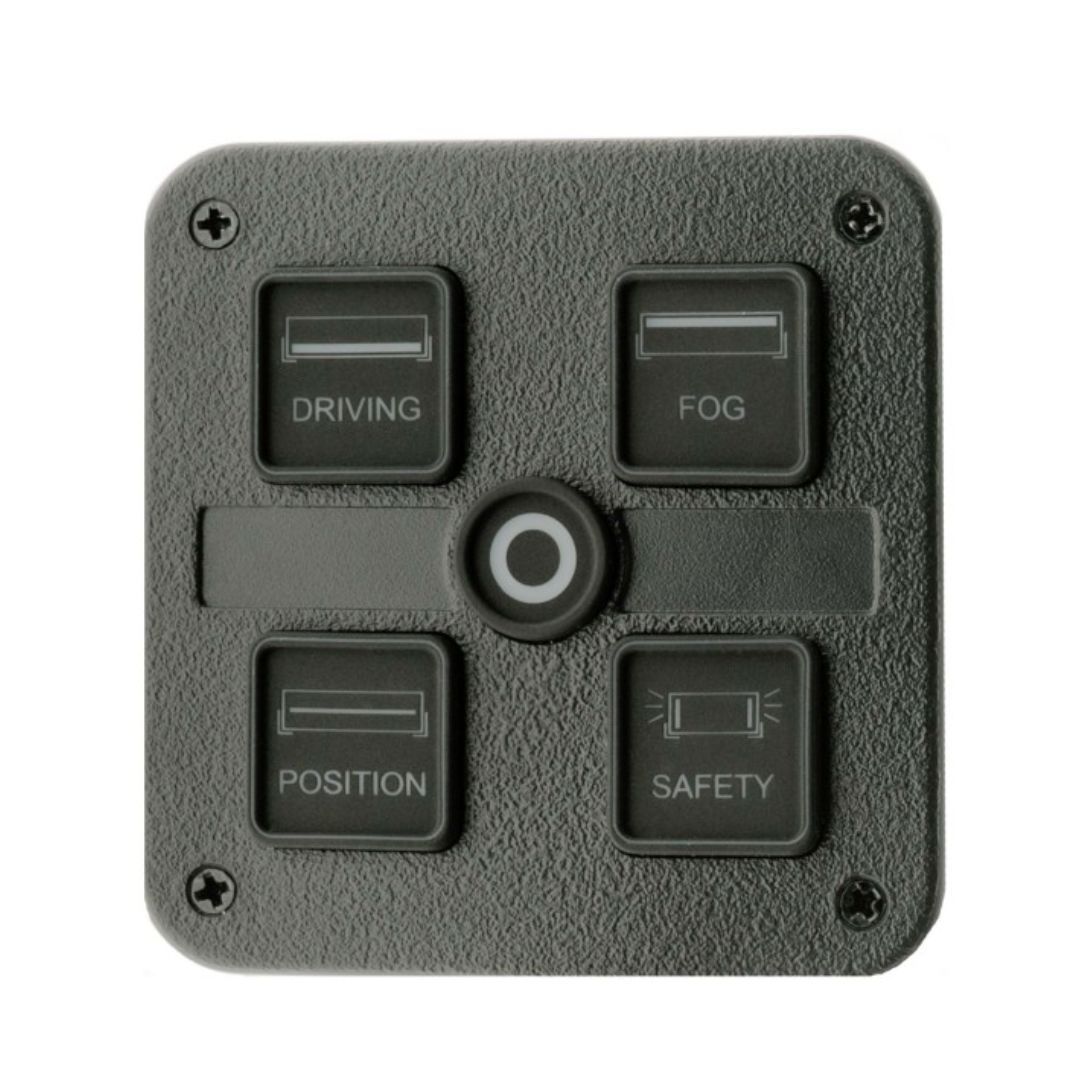

Featuring clearly labelled buttons for FOG, DRIVING, POSITION, and SAFETY lights, the panel allows each lighting function to be operated independently. In addition, a central master switch provides added convenience, enabling all active lighting functions to be switched off instantly with a single press. This thoughtful layout improves safety and usability, especially during demanding driving or working conditions.

Furthermore, each button is backlit with LED illumination, ensuring excellent visibility and ease of use even in low-light or night-time environments. With its robust design and straightforward mounting options, this car accessory delivers reliable control without unnecessary complexity.

Key Features

• 4 independent lighting controls for fog, driving, position, and safety lights

• Central master switch to turn off all active functions at once

• Clearly labelled and LED backlit buttons for easy night-time operation

• Wide operating voltage range suitable for various vehicle types

• Compact panel design ideal for dashboards and limited spaces

Technical Specifications

• Power supply: 12–36 V

• Maximum power: 100 W

• Maximum current: 8 A

• LED backlight: Yes

• Panel dimensions: 65 × 65 × 30 mm

• Cable length: Approx. 30 cm

• Mounting options: 3M adhesive tape or mounting bracket

• Certification: ECE R10 (EMC compliant)

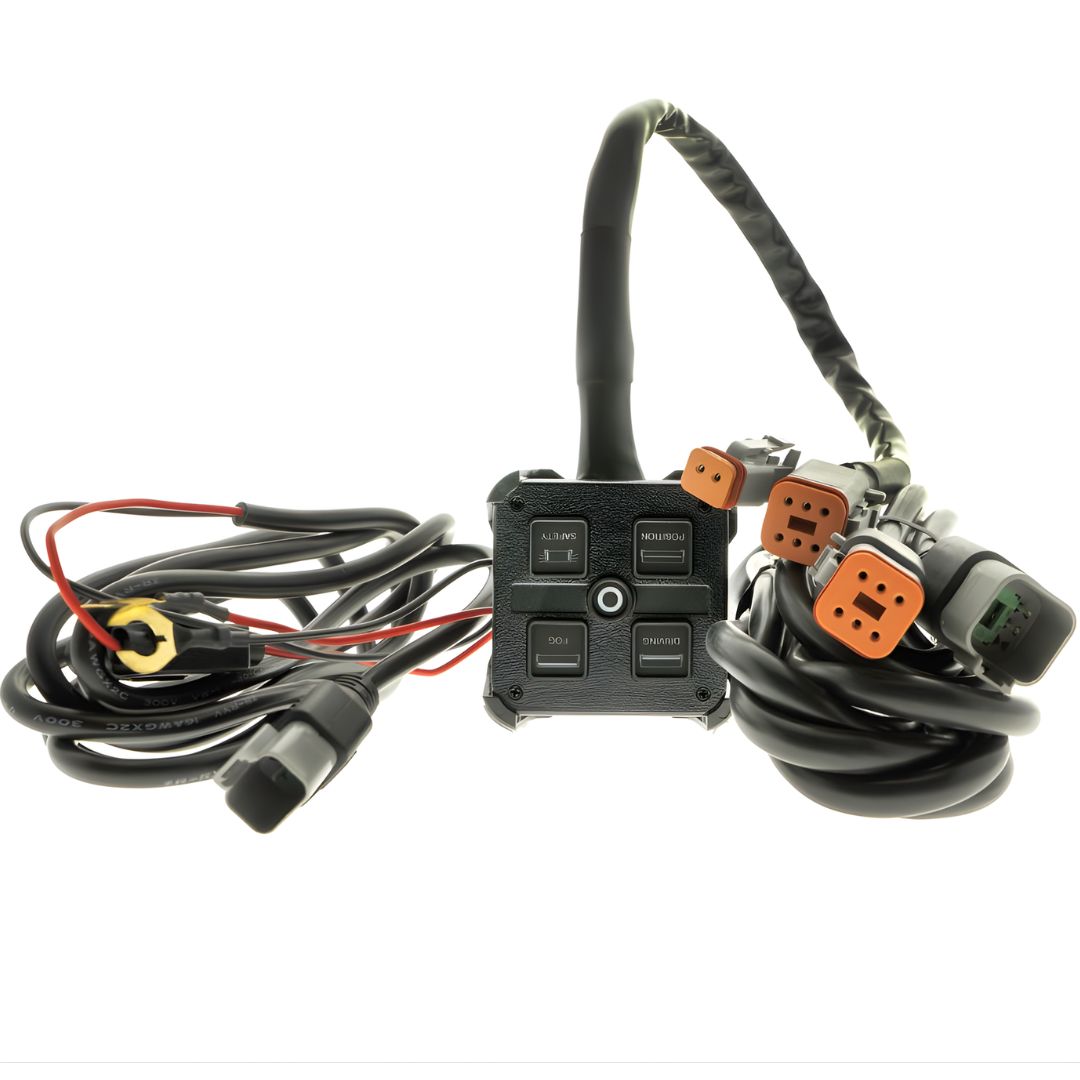

Included components:

• 5-button control panel (FOG / DRIVING / POSITION / SAFETY + master switch)

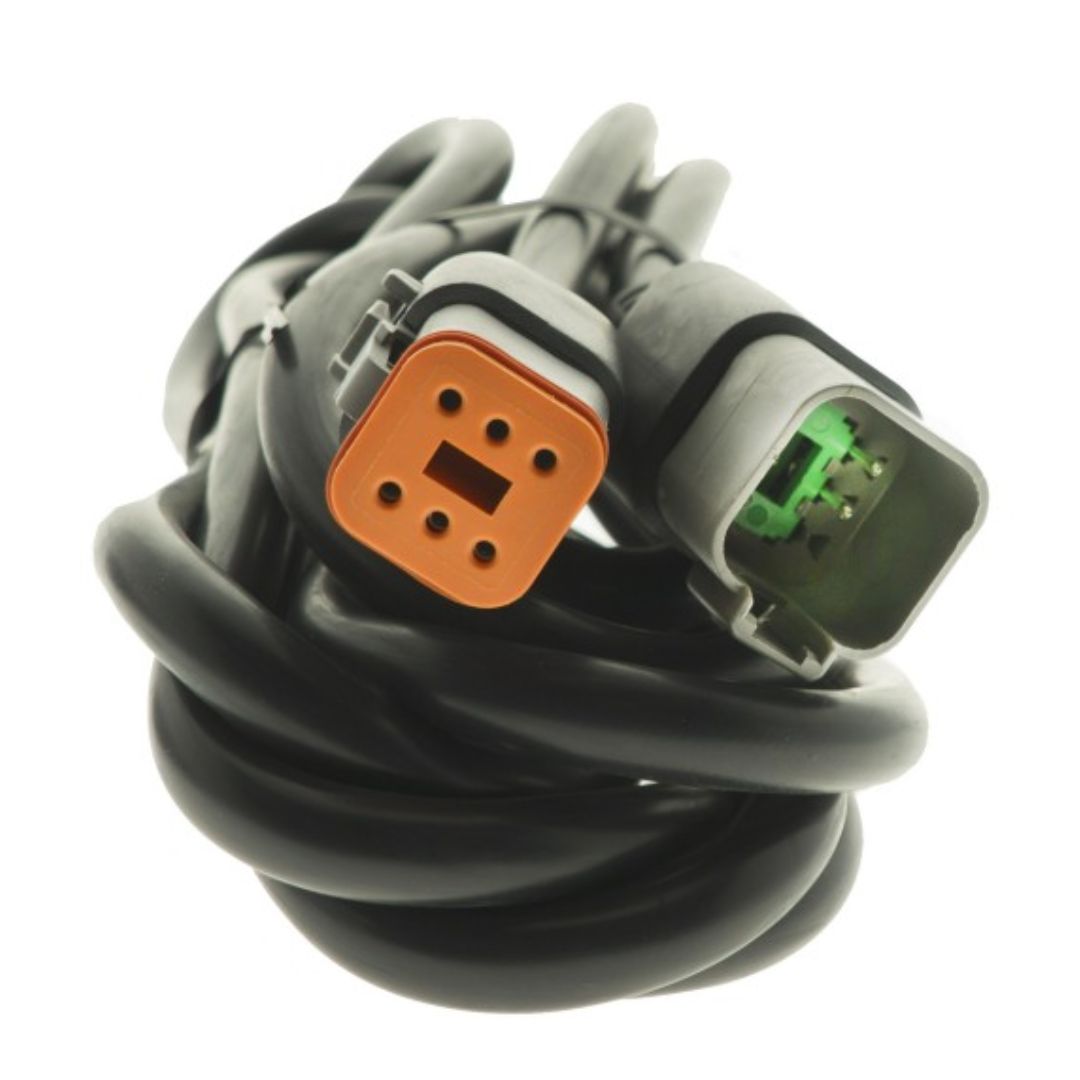

• Deutsch DT 6-pin extender (approx. 312 cm, 5 wires)

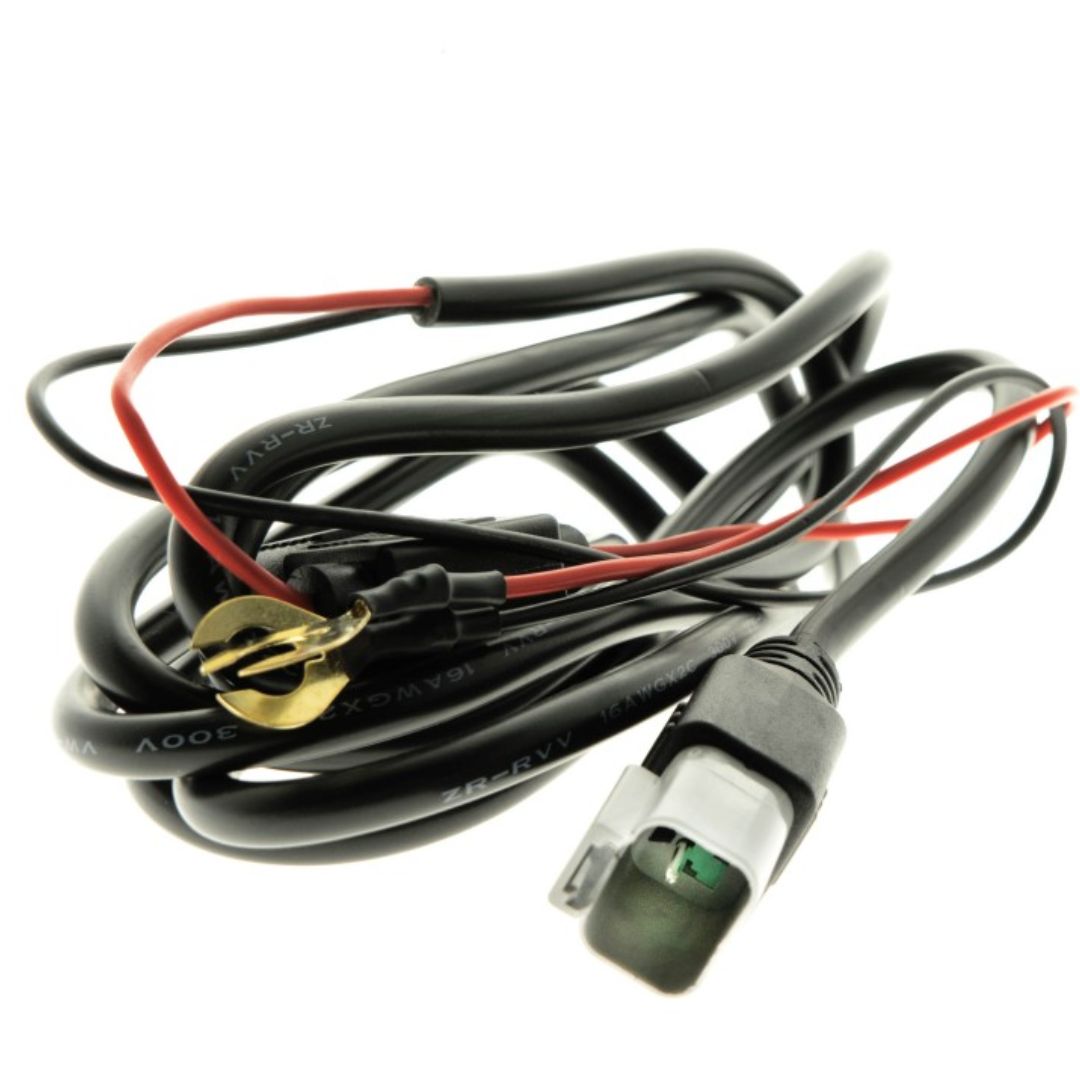

• Deutsch DT 2-pin extender with 30 A fuse and ring terminal

Compatible With / Applications

This LED lighting control panel is suitable for special vehicles, work machines, SUVs, and camper vans operating within a 12–36 V electrical system, providing organised and reliable lighting control for professional and recreational use.

For compatibility or installation support, contact LED Lights Ireland at 01 4140841.
